TL-SC3171是一款3GPP網絡攝像機，為夜視型，內置紅外發光管，支持10米夜視，支持雙路語音通信、郵件告警功能。以下文檔是TL-SC3171用戶手冊，為英文版本，有需要的朋友可立即下載此文檔。
溫馨提示：
本文檔為PDF格式文檔，因此需確保在閱讀之前你已經安裝了pdf閱讀器，如果尚未安裝閱讀器，建議下載福昕pdf閱讀器或其他PDF閱讀器，進行安裝后閱讀。
TL-SC3171用戶手冊目錄
Package Contents.........................................................................................................................1
Chapter 1 Minimum System Requirements.............................................................................2
Chapter 2 Physical Overview....................................................................................................3
2.1 Front View...................................................................................................................3
2.2 Bottom view.................................................................................................................3
Chapter 3 Using IP Camera via Web Browser.........................................................................5
3.1 Obain the IP Address ..................................................................................................5
3.2 Windows Web Browser ...............................................................................................7
3.3 Mac Web Browser.......................................................................................................9
Chapter 4 Using IP Camera via Mobile Phone ......................................................................12
4.1 3G Streaming Mobile View Mode..............................................................................12
4.2 3G Web Brower Mobile View Mode...........................................................................14
4.3 2.5G WAP Browser Snapshot Mode .........................................................................16
4.4 2.5G Web Browser Snapshot Mode..........................................................................16
4.5 Mobile View on Windows Mobile 6 Smart Phone......................................................16
Chapter 5 Configuration of Main Menu..................................................................................20
5.1 Live View...................................................................................................................20
5.1.1 Snapshot..............................................................................................................20
5.1.2 Zoom in / out the image via the monitor window..................................................21
5.1.3 Video play buttons................................................................................................21
5.1.4 Audio buttons.......................................................................................................21
5.2 Setting.......................................................................................................................22
5.3 Client Setting.............................................................................................................22
5.3.1 Mode....................................................................................................................23
5.3.2 View Size .............................................................................................................23
5.3.3 Protocol................................................................................................................23
5.3.4 Video Buffer .........................................................................................................24
5.4 Image Setup..............................................................................................................24
5.4.1 Brightness............................................................................................................24
5.4.2 Contrast ...............................................................................................................24
5.4.3 Saturation.............................................................................................................24
5.4.4 Hue ......................................................................................................................24
5.4.5 Default..................................................................................................................24
Chapter 6 Setting-BASIC.........................................................................................................25
6.1 System......................................................................................................................25
6.1.1 Information...........................................................................................................25
6.1.2 Date/Time.............................................................................................................26
6.1.3 Initialize................................................................................................................27
6.2 Camera .....................................................................................................................28
6.2.1 General................................................................................................................28
6.2.2 MPEG4 ................................................................................................................29
6.2.3 MJPEG.................................................................................................................32
6.3 Network.....................................................................................................................33
6.3.1 Information...........................................................................................................34
6.3.2 PPPoE (Point-to-Point Protocol over Ethernet)....................................................36
6.3.3 DDNS (Dynamic DNS).........................................................................................37
6.3.4 UPnP (Universal Plug and Play) ..........................................................................41
6.3.5 Bonjour.................................................................................................................42
6.3.6 IP Notification.......................................................................................................43
6.3.7 Messenger ...........................................................................................................44
6.4 Security.....................................................................................................................49
6.4.1 Account................................................................................................................50
6.4.2 HTTPS.................................................................................................................51
Chapter 7 Setting-Advance.....................................................................................................53
7.1 FTP client..................................................................................................................53
7.1.1 General................................................................................................................54
7.1.2 Alarm sending......................................................................................................54
7.1.3 Periodical sending................................................................................................58
7.2 SMTP........................................................................................................................59
7.2.1 General................................................................................................................60
7.2.2 Alarm sending......................................................................................................63
7.2.3 Periodical sending................................................................................................67
7.3 HTTP Event...............................................................................................................68
7.3.1 General................................................................................................................69
7.3.2 Alarm sending......................................................................................................70
7.4 Alarm Output.............................................................................................................72
7.4.1 Setting..................................................................................................................73
7.5 Schedule...................................................................................................................76
7.5.1 Setting..................................................................................................................77
7.6 Alarm input................................................................................................................77
7.6.1 Setting..................................................................................................................78
7.7 Alarm buffer...............................................................................................................78
7.7.1 Setting..................................................................................................................79
7.8 Motion detection........................................................................................................79
7.8.1 Setting..................................................................................................................81
7.9 System Log ...............................................................................................................81
7.9.1 Setting..................................................................................................................82
Appendix.....................................................................................................................................83
FAQ..............................................................................................................................................87

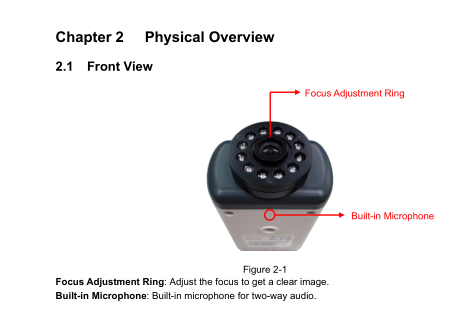

TL-SC3171用戶手冊——前視圖
TL-SC3171規格參數
接口
1個10/100M以太網RJ45口
1個直流插座
1個復位按鈕
1個3.5mm麥克風接口
1個3.5mm耳機接口
1個DI+/DI-/COM/NO接口
感應器
1/4” CMOS感應器
鏡頭
F2.0, 4.3mm
紅外燈
12個
夜視距離
10米
電源輸入
12V DC/1A
尺寸
136*75*47mm
使用環境
工作溫度: 0℃~40℃
存儲溫度: -40℃~70℃
工作濕度: 10%~90%RH 無凝結
存儲濕度: 5%~90%RH 無凝結
